Model #

B1676

Pic as reference only

Specification

WA0275

Type

Wall mounted

Total Power (W)

360W

Width (inch)

30

Voltage & Frequency

120V,60Hz

Motor

1X350W

Fan Speed

3+Boost

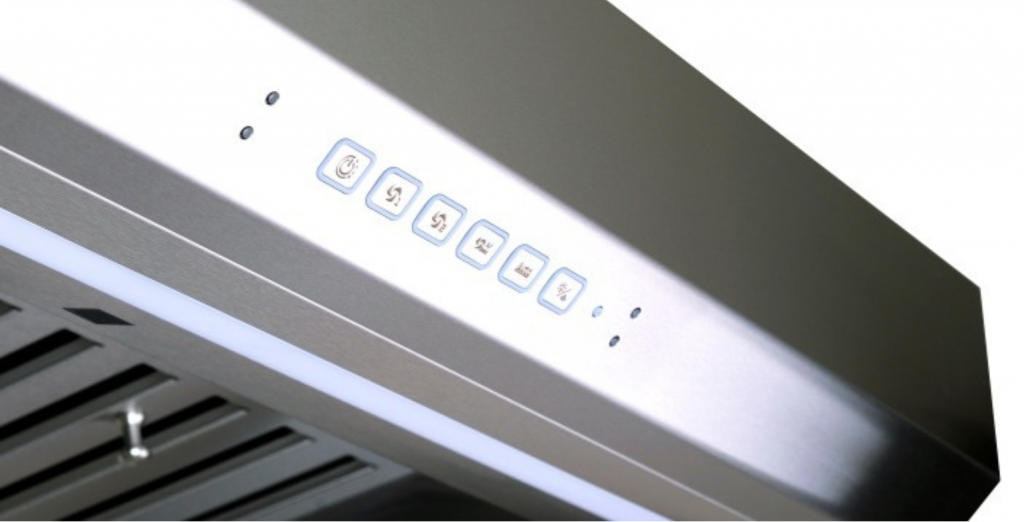

Switch control

Soft touch + Hand motion

Remote control

NO

Lamp type & Power

LED strip; 1x10W

Timer delay

Yes

Infrared Heat sensor

Yes

WIFI

Yes

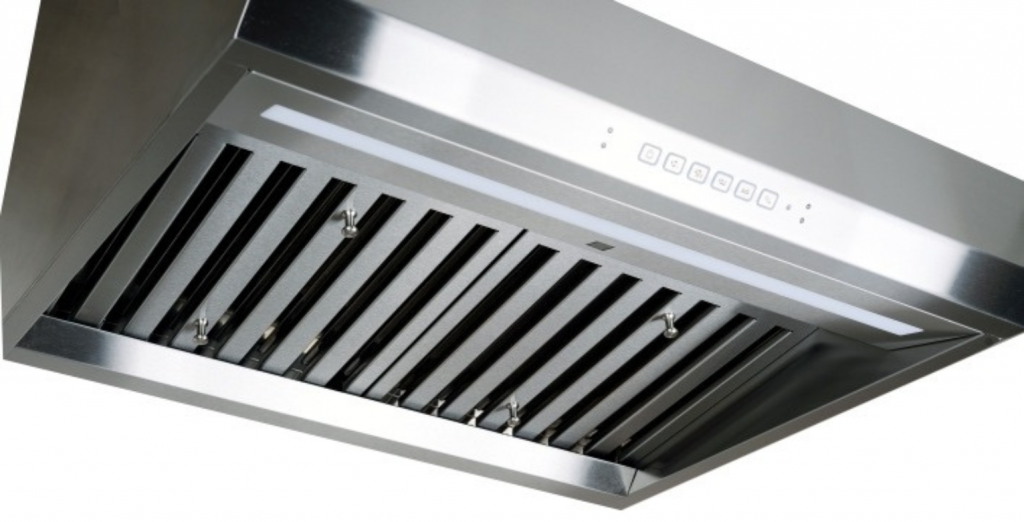

Filter

2pcs SS baffle filter

Dimension of Outlet Adapter

Round; Dia 7"

Bottom chimney

Yes

Top chimney

NO

Aluminium duct

NO

Recirculation

N/A

Duct fastener

N/A

Performance

Round

Max Air Flow CFM

750

Noise level High Speed Sones

8.5

Package

Round

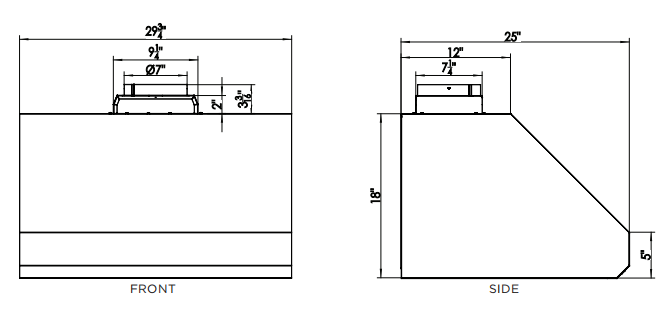

Product Dimension (inch)
Without bottom chimney

Carton size (W*D*H)(inch)(mm)

34.4(875)×22.6(575)×28.9(735)

Container loading (20GP/40GP/40HC)

78/162/162

Approval

Round

Approval

ETL
